The best suspension seatposts for PEV riders
Most e-bikes have no rear suspension, and a Class 3 holds 28 mph, so every pothole goes straight up the seatpost into your back. A linkage suspension seatpost takes the edge off for a fraction of what a full-suspension frame costs. Every post here has a published rider limit, checked at the maker in September 2026, because a post rated below your weight bottoms out on every bump.
Our Top Picks
The short answer. Every pick is written up in full below.
Top pickCane CreekThudbuster STSuspension seatpost, elastomer linkageRead why
Upgrade pickKinektXR Active Suspension SeatpostSuspension seatpost, coil spring linkageRead why
Most travelCane CreekThudbuster LTSuspension seatpost, elastomer linkageRead why
Best value postSR SuntourSP12 NCX Suspension SeatpostSuspension seatpost, coil spring linkageRead whyCompare the Picks
| Product | Type | Travel | Rider limit | Sizes |
|---|---|---|---|---|
| Cane CreekThudbuster STTop pick | Suspension seatpost, elastomer linkage | 50 mm | 330 lbs (150 kg) | 27.2 x 345 mm; 30.9 and 31.6 x 375 mm |
| KinektXR Active Suspension SeatpostUpgrade pick | Suspension seatpost, coil spring linkage | 0-35 mm | 80-320 lbs (36-145 kg) | 27.2, 30.9, 31.6, 34.9 mm x 350, 420, 510 mm |
| RedshiftShockStop City Suspension Seatpost | Suspension seatpost, coil spring linkage | 35 mm | 308 lbs (139 kg) | 30.9 and 31.6 mm x 350 or 400 mm |
| Cane CreekThudbuster LTMost travel | Suspension seatpost, elastomer linkage | 90 mm | 250 lbs (113 kg) | 27.2 x 390 mm; 30.9 and 31.6 x 420 mm |
| SR SuntourSP12 NCX Suspension SeatpostBest value post | Suspension seatpost, coil spring linkage | 50 mm | Up to 120 kg (hard spring) | 27.2, 30.9, 31.6 mm x 350 or 400 mm |
The Picks in Full
Thudbuster ST
The suspension seatpost the most sources name first, and the one with the highest published rider limit here: 330 lbs. Its parallel linkage gives 50 mm of travel on tool-free elastomers you swap to match your weight.
- 330 lb rider limit, the highest in this list
- 50 mm of travel on a parallel linkage
- Tool-free elastomer swaps to match rider weight
- 580 g in 31.6 mm
- Round alloy saddle rails only, no oval or carbon rails
- Needs at least 100 mm of post showing above the frame
- Amazon listings are third-party bike shops, so we link to Cane Creek
- Type
- Suspension seatpost, elastomer linkage
- Travel
- 50 mm
- Rider limit
- 330 lbs (150 kg)
- Sizes
- 27.2 x 345 mm; 30.9 and 31.6 x 375 mm
XR Active Suspension Seatpost
The most tunable post here: five color-coded springs and a preload adjustment cover riders from 80 to 320 lbs, and it comes in four diameters including 34.9 mm. Kinekt describes the XR as especially well suited to e-bike riders.
- Five springs plus preload cover 80 to 320 lbs
- The only pick offered in 34.9 mm
- 541 to 610 g depending on size
- Sold on Amazon by the maker
- The most expensive post here at $269.95
- 35 mm of travel, less than the Thudbusters
- 24 mm setback moves the saddle back, which can change your reach
- Type
- Suspension seatpost, coil spring linkage
- Travel
- 0-35 mm
- Rider limit
- 80-320 lbs (36-145 kg)
- Sizes
- 27.2, 30.9, 31.6, 34.9 mm x 350, 420, 510 mm
ShockStop City Suspension Seatpost
Redshift's well-reviewed ShockStop, tuned for e-bikes and commuting, with a 308 lb rider limit where the standard Endurance post stops at 242 to 264. It comes in the 30.9 and 31.6 mm sizes many e-bikes use.
- 308 lb limit, well above the standard ShockStop
- Made for e-bikes and commuting, per Redshift
- Two springs included, preload adjustable
- Sold on Amazon by Redshift
- No 27.2 mm size
- Only 26 Amazon ratings so far, it is a newer model
- 35 mm of travel
- Type
- Suspension seatpost, coil spring linkage
- Travel
- 35 mm
- Rider limit
- 308 lbs (139 kg)
- Sizes
- 30.9 and 31.6 mm x 350 or 400 mm
Thudbuster LT
90 mm of travel, the most of any post here, for riders on rough roads or an upright bike with no rear suspension at all. The cost of that travel is a lower 250 lb rider limit and a lot of exposed post.
- 90 mm of travel, the most here
- Same tool-free elastomer tuning as the ST
- Parallel linkage keeps the saddle level through the stroke
- 250 lb limit, lower than the ST
- Needs at least 146 mm of post showing above the frame
- 750 g in 31.6 mm
- Amazon listings are third-party bike shops, so we link to Cane Creek
- Type
- Suspension seatpost, elastomer linkage
- Travel
- 90 mm
- Rider limit
- 250 lbs (113 kg)
- Sizes
- 27.2 x 390 mm; 30.9 and 31.6 x 420 mm

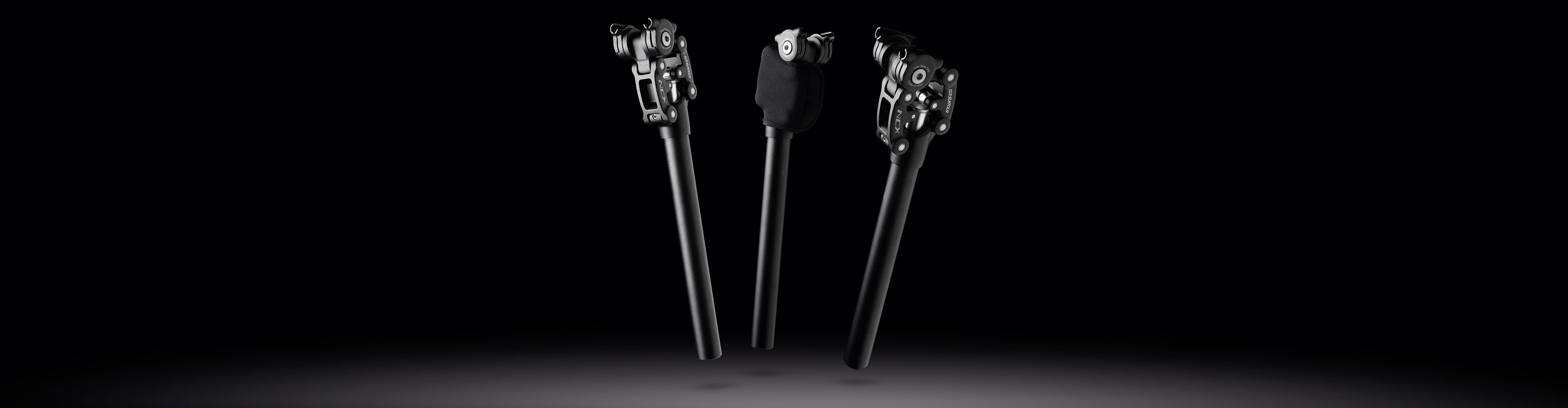

SP12 NCX Suspension Seatpost
The budget linkage post that reviewers and e-bike forum regulars keep recommending: 50 mm of coil-sprung travel for roughly half the price of the premium posts. Springs are sold by rider weight, up to 120 kg on the hard spring.
- 50 mm of travel for about half the premium price
- Soft, medium and hard springs by rider weight
- Preload adjustment and an optional cover
- Lowest rider ceiling of the posts here
- Suntour does not publish a weight; retailers list about 800 g
- No listing sold by Suntour or Amazon, so we link to Suntour
- Type
- Suspension seatpost, coil spring linkage
- Travel
- 50 mm
- Rider limit
- Up to 120 kg (hard spring)
- Sizes
- 27.2, 30.9, 31.6 mm x 350 or 400 mm
How We Pick
We do not lab-test this gear. These picks come from published manufacturer specifications, the certifications that carry real weight in each category, and what long-term owners report. Where a manufacturer does not publish a figure we leave it blank rather than estimate it, which is why some cells in the table read as a dash.
Badges are ours and reflect the trade-off each product wins on, not what any brand paid for. Placement is never sold. When we start testing gear hands-on, this section will say so and will name what changed.
